Flow Switches

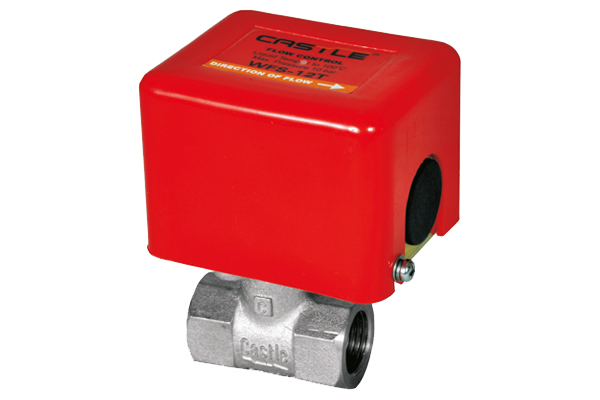

Paddle / 'T' Type

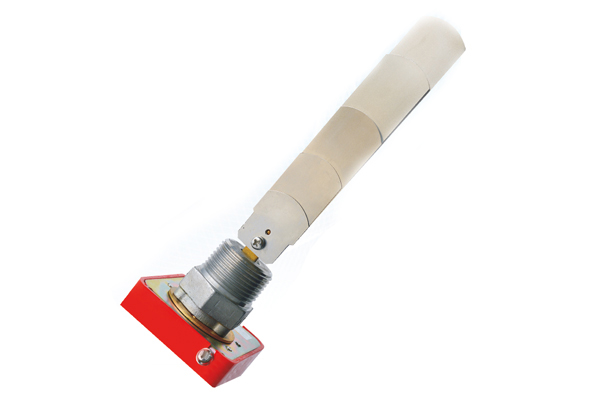

MICRO Paddle Type MPC Series flow controllers are specifically designed for use on liquid lines such as water, ethylene glycol or any other fluid which is not harmful to brass and which is not classified as a hazardous fluid. These flow controllers can be mounted on horizontal or vertical pipeline but must be located in section of pipe where there is a straight run of at least 5d (d – Diameter of Pipe) on each side of the switch.

Enclosure

 Engineering Plastic

Ingress Protection

 IP-55
Paddle Material SS 304 supplied in 5 piece packages in
size of 1”, 2”, 3” 5” & 6” for Paddles only
Paddle Link Brass
Bellow Material Phosphorus Bronze
Base Cover Mild Steel
Max. Pressure 10 Bar (150 PSI)
Operating Temperature Ambient: 0 … 60'C
Process: 0 … 100'C
Pipe Connection SS 1/2” BSP (Female) for 'T' Type
ABS 1” NPT (Male) for Paddle Standard /
SS (Optional)
Set Point Adjustable on site. Screw provided under top cover
Bellow Life 500000 cycles
Switch action SPDT snap action
Electrical rating 250 V AC, 15 (7.5) Amp, 50/60 Hz
Conduit Entry 22 mm diameter hole for 1/2” conduit
Flow range & Unit 10 … 628 LPM
m3/hr, US GPM units available
Features • As a safety device against control device failure
• Do not require center adjustment
• Save a lot of installation time
• No leakage problem
• No welding or adaptor required
