Flow Switches

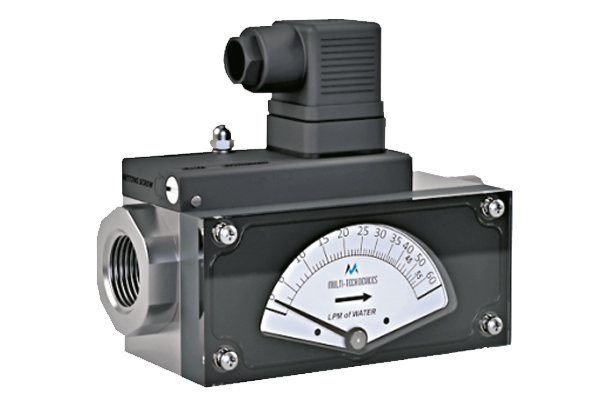

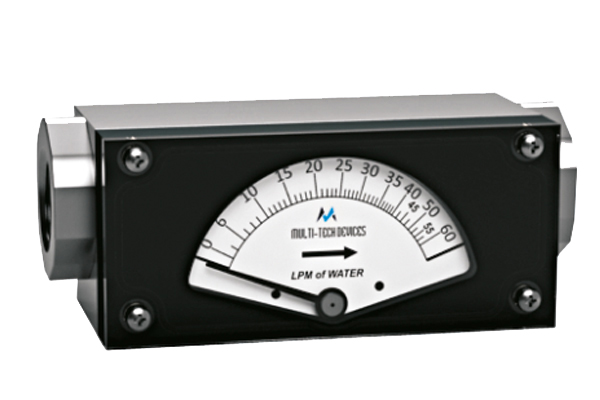

Magnetic Piston Dial Type

MICRO Piston operated flow switch with accuracy better than 3% and repeatability of 1 ~ 1.5% of FSD. The design of this flow switch offer relatively lower pressure resistance compared to its predecessors.

Housing Material

 Aluminium (Standard) / SS 316 (Optional)

Flow Element

 Stainless Steel Compression Spring
Magnetic Piston Hard Ferrite
Static Pressure 200 bar
Wetted Parts Aluminium or SS 316, SS 302 spring, Teflon & Ceramic Magnet
Dial Aluminium – Pre coated white background
black marking over 900 arc
Pointer Aluminium-Black finish
Window Transparent Acrylic
Sealing Gasket Viton & EPDM 'O' Ring
Process Connection 1/4” NPT (F) (Standard)
Operating Temperature Storage: -25'C to +65'C
Process: Maximum 80'C (Standard)
Mounting Style In-Line
Flow Range 0 … 30 / 60 / 100 LPM
0 … 30 / 60 LPM for Oil (Viscosity ≤ 68 cst)
Optional • Switching Facility (Between 20 to 100% of full span),
15 VA, 0.5 Amp, 230 VAC / 200 VDC or 100 VA,
1 Amp, 230 VAC / 200 VDC
