Differntial Pressure Gauge

Magnetic Piston Type Differential

MICRO Magnetic Differential Pressure Gauges are designed to measure the difference in pressure between two points (High & Low) in a system where static pressure is very high.

OPERATING PRINCIPLES : High & Low pressures are separated by a sensor assembly consisting of a magnet, piston, Teflon seal and a range spring. The difference in pressure causes the sensor assembly to move in proportion to the change against a range spring. A rotary magnet located in a separate body cavity and isolated from the acting pressures, is rotated by magnetic coupling as per the linear movement of the sensor assembly. A pointer attached to the rotary magnet indicates differential pressure on the dial.

Nominal size

 Ø 40, 63, 80, 100 & 150 mm

Accuracy

 ±2.5% of FS (Ascending) (±2% of FS Optional)
Case & Bezel SS 304 case with Nitrile Rubber sealing ring at front
Ingress Protection IP 65 as per EN 60 529 or IS/IEC 60 529
IP 68 as per IS/IEC 60 529 – Optional
Pressure element — Compression Spring SS 304
Magnetic Piston Hard Ferrite
Static Pressure 100 bar (Standard) (200, 450 & 700 bar Optional)
Housing (Wetted Parts) Aluminium (Standard) / SS 316 / SS 316L /
Aluminium Housing with SS 316 Sleeve)
Dial Aluminium —Pre-coated White with black marking
over 90° arc ± 5°
Pointer Aluminium —Black Finish Fix Type
Window Clear Acrylic
Sealing Material Nitrile Rubber (Standard)
(EPDM & Viton Rubber Optional)
Process Connection : (HP & LP) 1/4” BSP (Female) Standard
Permissible temperature Ambient : -25'C to 65'C
Process : Maximum 80'C (Standard) (200' C Optional)

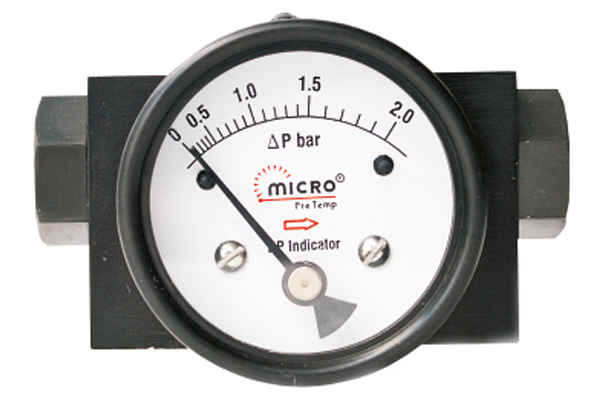

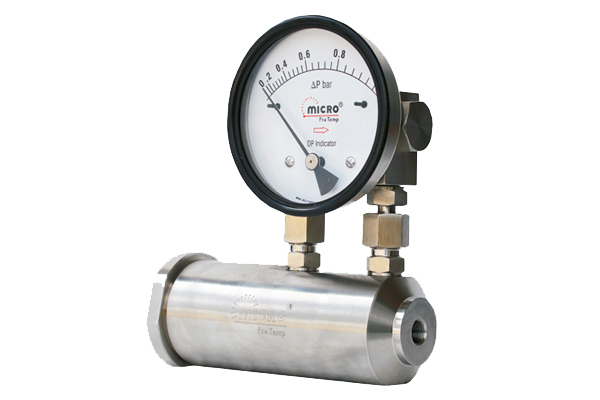

Type of mounting Inline Mounting

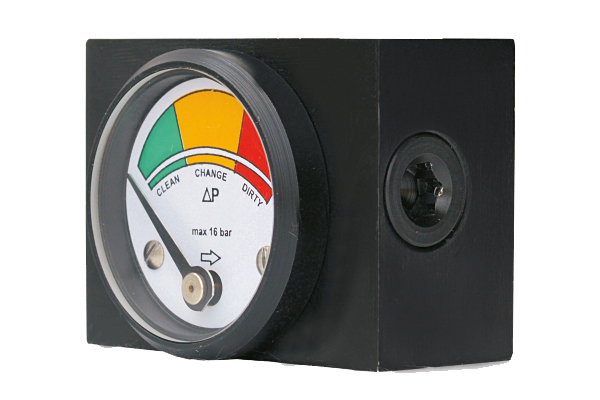

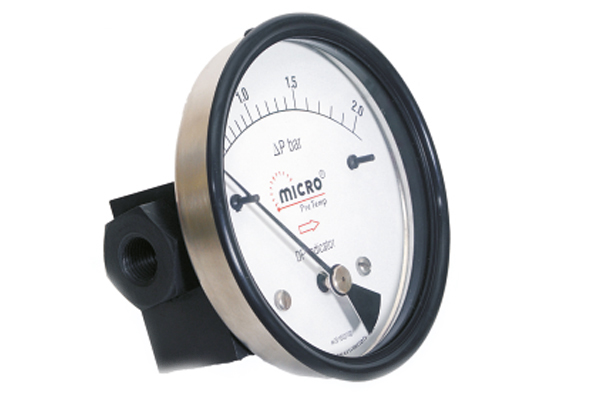

Direct Bottom Mounting

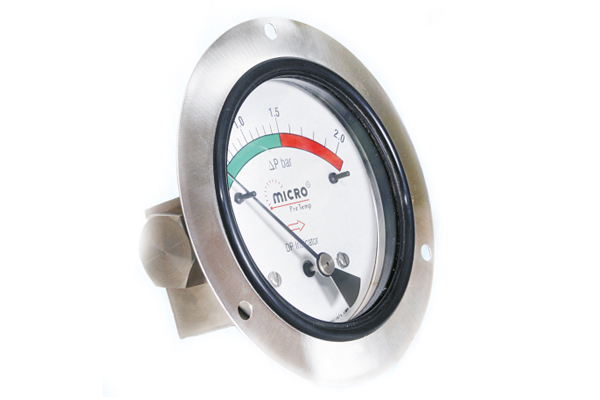

Direct Back or Panel Back Mounting
Pipe or Yoke Mounting
Differential Pressure ΔP range 0… to 10 bar

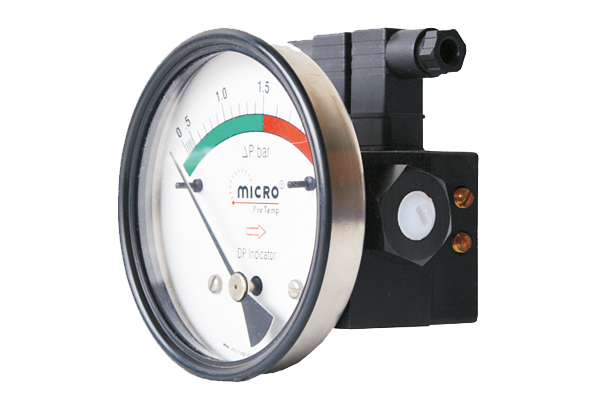

Optional Available features • Magnetic Reed Switch
(Single SPDT Standard / Double SPDT Optional)
(Between 20 to 100% of FS)
• Switch Rating: 15 VA, 0.5 Amps, 230 V AC /
200 VDC or 100VA, 1.0 Amps, 230 V AC / 200 VDC
• Liquid Filled Case
• Maximum pointer Follower
• Customized Dial
• Customized Mounting
