Transmitter

transmitter

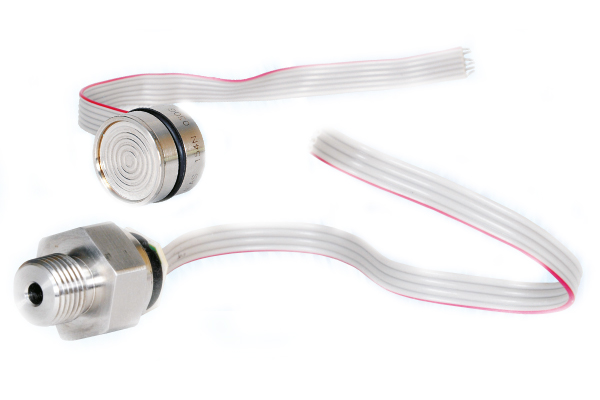

Pressure Transmitter is suitable for measurement of liquid or gas measurement, even for difficult media such as contaminated water, steam, and mildly corrosive fluids. The pressure transducer cavity is machined from a solid piece of 17-4 PH stainless steel. The standard version includes a 1/4" NPT thread allowing a leak proof, all metal sealed system. The standard version is suitable for many applications, but semi-custom design is also available where the volume and application warrants.

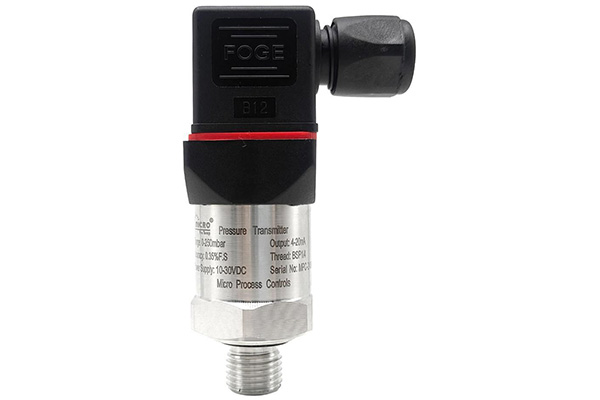

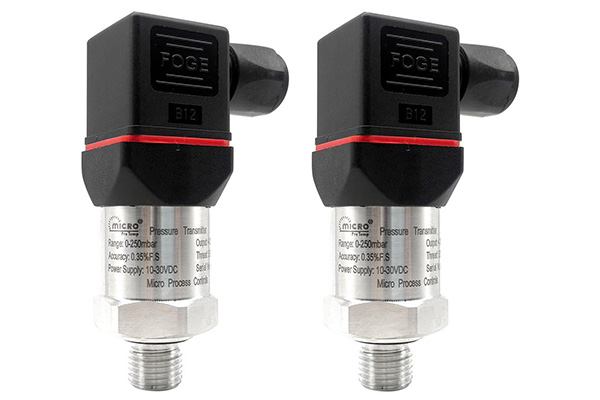

COMPACT PRESSURE TRANSMITTERS

Accuracy

 ±0.25% of Span (combined non
linearity, hysteresis, and repeatability)

Total Error Band

 ±1% Span
(Over compensated range)
Long Term Stability ±0.25% of Span
Permissible Temperature Compensated : -200 … +85'C
Operating : -400 … +125'C
Storage : -450 … +125'C
Burst pressure 5 Times of FS
Over Load Pressure 2 Times of FS
Connection PVC Standard / SS Nozzle (Optional)
Media Compatibility All materials compatible with 17-4 Stainless Steel
Supply Voltage 24 V DC
Output 4 … 20 mA (Standard)
0.5 … 4.5 V / 1 … 5 V / 0 – 5 V /
0 – 10 V (Optional)
Range -1 … 0 … 1000 bar
mmWC & Absolute ranges available on request.
Additional Services We undertake repair & Refilling
& attaching Diaphragm Seal to Transmitters of any make.

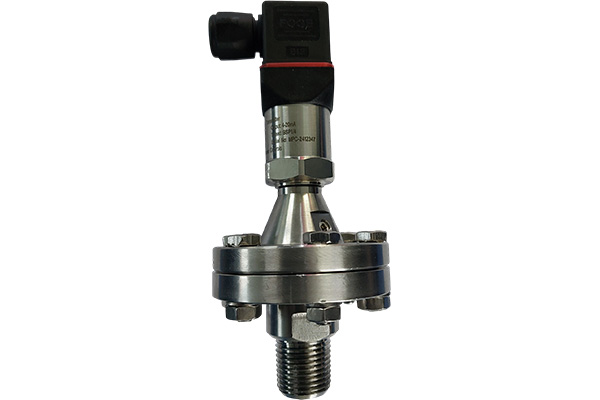

Optional Available Features Diaphragm Seal for various corrosive or
contaminated liquids

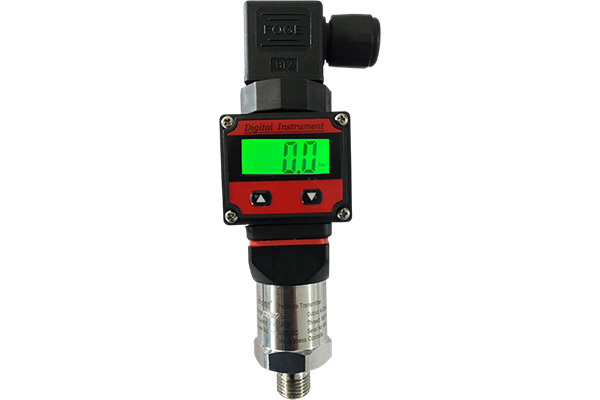

SMART PRESSURE & DP TRANSMITTERS

Accuracy

 ±0.1% of FS for PT & DPT

Display

 With or Without display
Supply Voltage Heavy Duty Borosilicate Glass
Range 0 ... 700 bar (For PT)
0 ... 30 bar (For DPT)
Output 4 ... 20 mA HART Protocol
Enclosure Protection Flame Proof
Coming soon...

Inquiry Now
