Digital Pressure Gauge

Digital Display

MICRO Digital Pressure Gauge is full electronic structure and battery powered, which make it very easy for onsite installation. Specifically, a high precision piezo resistive pressure sensor is used and output signal is processed by high precession low temperature drifting amplifier and then sent to high precession Analog to Digital converter to be converted in to digital signal and after being computed and processes, the actual pressure value is showed on to LCD screen.

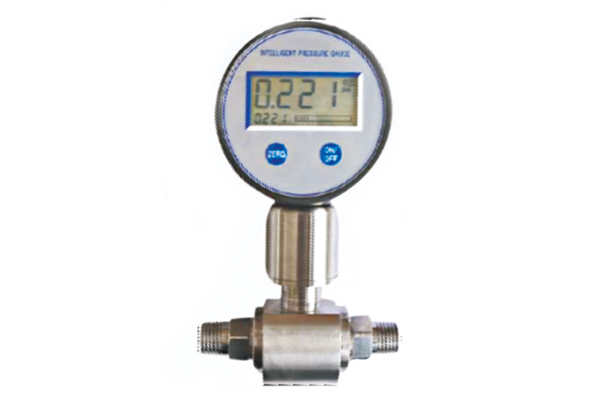

Series BPZ2006 is a TRUE media isolated, wet/wet digital differential pressure gauge designed to measure corrosive gases and liquids. Its rugged construction incorporates a micro machined silicon pressure sensors (MEMS) and has no moving parts ensuring long life. Pressure is transferred from diaphragm to sensor through silicon oil.

Description Model
MPC-05 BPZ-2000 TX-430 BPZ-2006
Measurement Pressure Pressure Pressure Differential Pressure (ΔP)
Display 5 Digit, 15 mm High 2 Line Backlit LCD with Bar Graph 4 Digit, 18 mm LCD with Bar Graph Display 5 Digit 7 Segment single line LCD display 5 Digit, 18 mm High LCD with Bar Graph Display
Resolution   As per range and unit selection
Calibration Password Protected N. A. Password Protected N. A.
Accuracy ±0.5% of FS or Better ±0.25 of FS or Better ±0.15 of FS ±0.25 of FS or Better
Power Supply 9V Alkaline Battery 9V Alkaline Battery 7.5 VDC (1.5 x 5 No Alkaline) 9V Alkaline Battery
Battery Life 2000 Hours in continues mode 2 years in sleeping mode 2 Years in Power Saving Mode 1000 hours in Continues Mode 2 Years in Power Saving Mode
Bar Graph Pressure on percentage of dynamic display (in progress bar display) Pressure on Percentage of dynamic display (In progress bar display) N. A. Pressure on Percentage of dynamic display (In progress bar display)
Enclosure S.S. 304 Snap Action Case with bayonet bezel Ø100 mm ABS Ø67 mm x 116 mm Height Aluminim Anodized Ø100 mm ABS Ø67 mm x 116 mm Height
Sampling Rate 4 Times / Sec.
Key Pad Soft Touch Keypad on Front Window
Proof Pressure 150% of FS 200% of FS or 6000 PSI whichever is lower 150% of FS 200% of FS or 6000 PSI whichever is lower
Burst Pressure N. A.   300% of FS or 10000 PSI whichever is lower N. A.   300% of FS or 10000 PSI whichever is lower
Media Compatibility All corrosive media compatible with SS 316
Temperature -20... 70 Deg C -1... 49 Deg C 0... 50 Deg C -1... 49 Deg C
Process Connection 1/4" BSP (M) 1/4" NPT (M) 1/4" BSP (M) 1/4" - 1/8" NPT (M)
Engineering Units Mpa, kPa, Pa, bar, psi, Tor, ATM, Kg/cm2, mmH2O, MH2O psi, bar, Kg/cm2, kPa Kg/cm2, bar, psi, kPa, mmHg, Inch Hg, mmH2C Inch H2O psi, bar, Kg/cm2, Kpa
Pressure Ranges -1 to 700 bar 0-1000 bar -1 to 700 bar 0 to 35 bar
